Inbound identity using Openid-client#

This tutorial offers a step-by-step guide to integrate your external OP Server using openid-client. Especially tutorial covers the private_key_jwt token endpoint auth method.

Pre-requisites#

  • No previous knowledge of passport (the key Gluu server component for inbound identity) is required to follow this document, however, it is assumed your Gluu server has Passport already enabled.

  • Ideally, your external OP Server discovery endpoint should be publicly accessible to the Internet. This is due to openid-client processes. which hit the discovery endpoint to fetch all your external OP Server configuration.

  • Required your external OP Client credentials, client_id and client_secret

Add openid-client identity providers#

In this section, we'll onboard Apple to the list of known providers for inbound identity.

  1. Log in to oxtrust UI with an administrative user
  2. Go to Passport > Providers and click on Add new provider
  3. For provider ID, enter oidc. If you want to use a different ID, you'll have to change the redirect URL in your provider OP Server.
  4. Enter a Display Name (eg. oidc)
  5. For type choose openid-client
  6. For strategy enter openid-client
  7. For mapping enter openid-client
  8. Supply a logo location if desired. More info here
  9. Enter the client_id, client-secret, issuer.
  10. Default token_endpoint_auth_method is client_secret_post. Set private_key_jwt for Private Key JWT flow. You have to enable this same method at your external OP.
  11. Click on Add

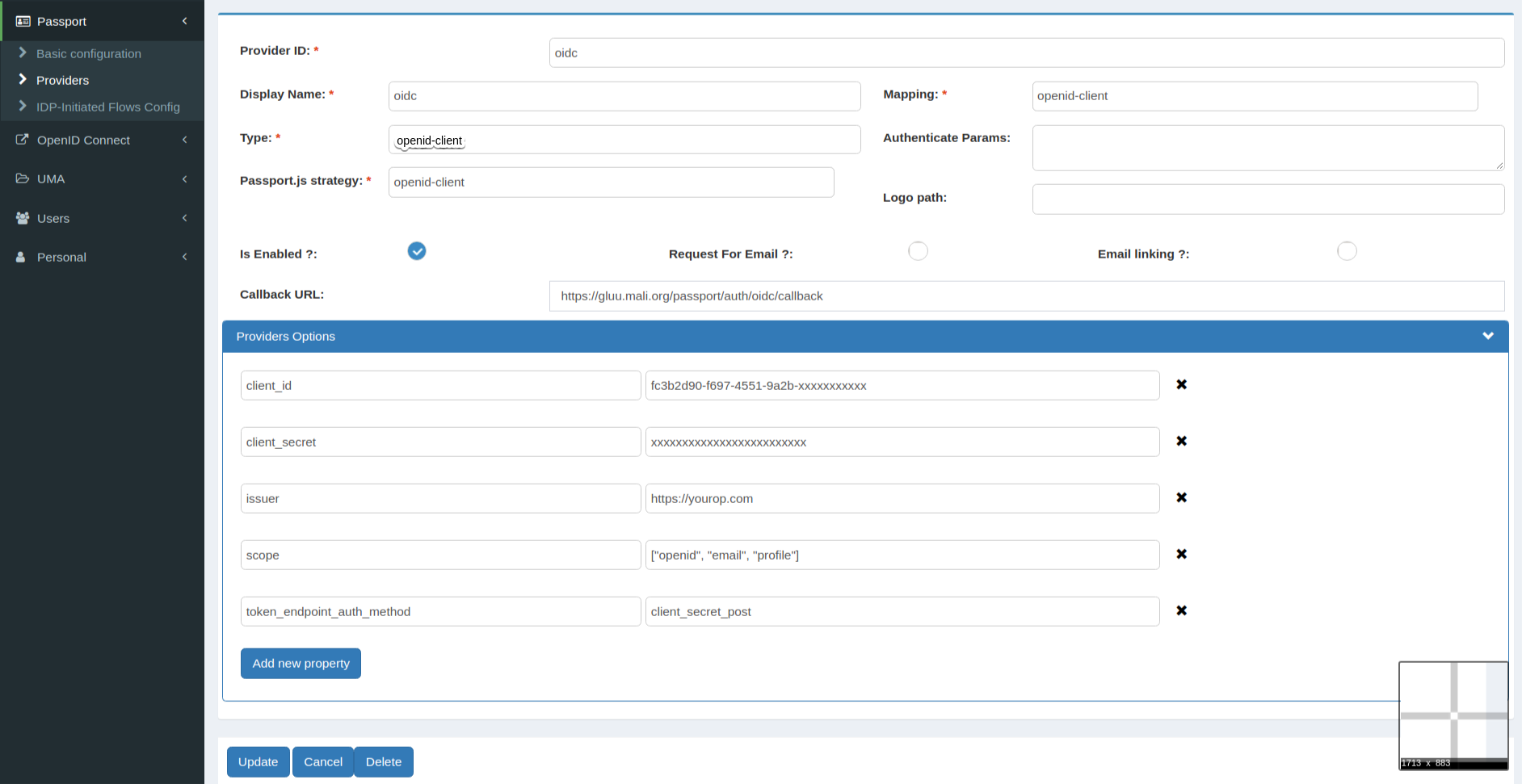

Here is an example of how the form might look:

Sample form

After Add, it will create JWKS keys at /opt/gluu/node/passport/server/jwks/[provider_id].json. It will look like below:

{
    "keys": [
        {
            "e": "AQAB",
            "n": "vPVxjxxxxxx...GpnQIKTpdQ8Au5Fxw",
            "d": "FAPzuXLY_xD5TWm65oSxxxxx....m-iYSmQPIrubbycQ",
            "p": "3wgAAjAOSibj--LxNfnxxx...bF3NETvPQmT7k8Bx0nr4zViAWhK-en-XxSd8PrSBqeCX0g-s",
            "q": "2OQQjzDmj25WWqql5AmIgT6xxxxx....FU9bhavwS2Y5EAipyrcotyKiByDrc41vqekKAffe-pU",
            "dp": "WxTdTAdsDoRLXraTY0OwxkhtfOS3xxx....OgcbZn-U_CwUJ2gZIq-88jHhPTae2szElyeNWM_k",
            "dq": "WgARawnUsrILfWYQnpbiIReMotWfBE8xxxx....1Tc2u1tX6QvbgceCy065uFK88uzDmwICB0",
            "qi": "QlA3QVPOYtC9N8aKN3iOdSrymWwySFdPNQzAvxxxx.....8tc9sgieT6SFL74-KKLa5CCOdTYRGQ",
            "kty": "RSA",
            "kid": "E9VcpIeTlkbFuXg6qxx....R85BhOGziDH43cE"
        }
    ]
}

You just only need to take the public key from above json, make a new json like below example and set it to your external OP. If you are using Gluu CE as a external OP then go to OpenID Connect > Clients > Open Your Client > Encryption/Signing settings > JWKS, add below JSON in JWKS field and update client.

{
    "keys": [
        {
            "e": "AQAB",
            "n": "vPVxjxxxxxx...BIEkTmaxNpG-a9BtqU8Lw",
            "kty": "RSA",
            "kid": "E9VcpIeTlkbFuXg6qxx....R85BhOGziDH43cE"
        }
    ]
}

Done, You configured provider and enabled private_key_jwt token auth method.

Test#

Set passport's logging level to debug. You can revert to info or other when you are done with your tests. In oxTrust go to Passport > Basic configuration and change Log level.

You can use any OIDC client app protected by Gluu to test. To do so, ensure to pass passport_social for acr_values in your authentication request. Actually, you can leverage oxTrust to do this: go to Configuration > Manage authentication and set oxTrust acr to passport_social. Then logout.

Attempt to login to the application. You will see oidc listed on the right-hand panel. Click on it to trigger the flow. You will be taken to your external OP provider to enter your credentials and then returned to the application with access to it.

Did something go wrong?

  • Double-check all configurations were applied accurately
  • Check passport.log (find it at /opt/gluu/node/passport/logs)
  • Open a support ticket
