Google Workspace Single Sign On

• Using protocol: SAML

Google workspace configuration

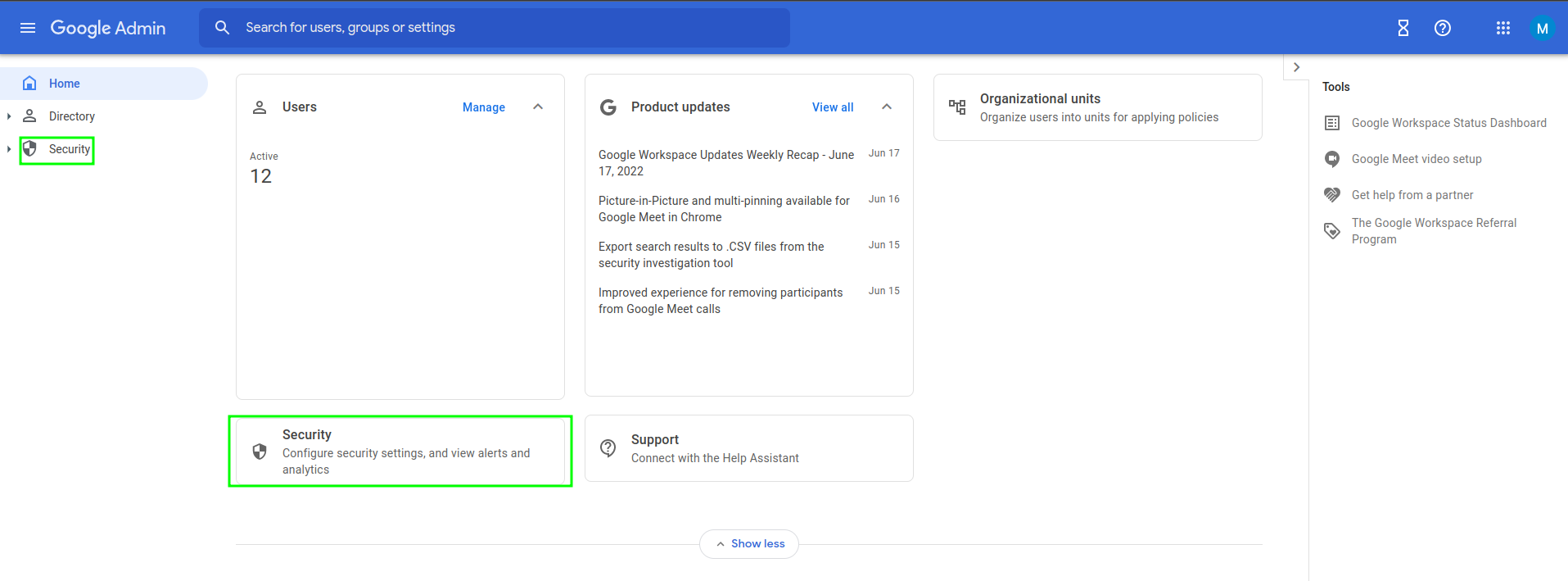

• Log into admin.google.com with administrative privilege user.

• Security > SSO with third party IdP

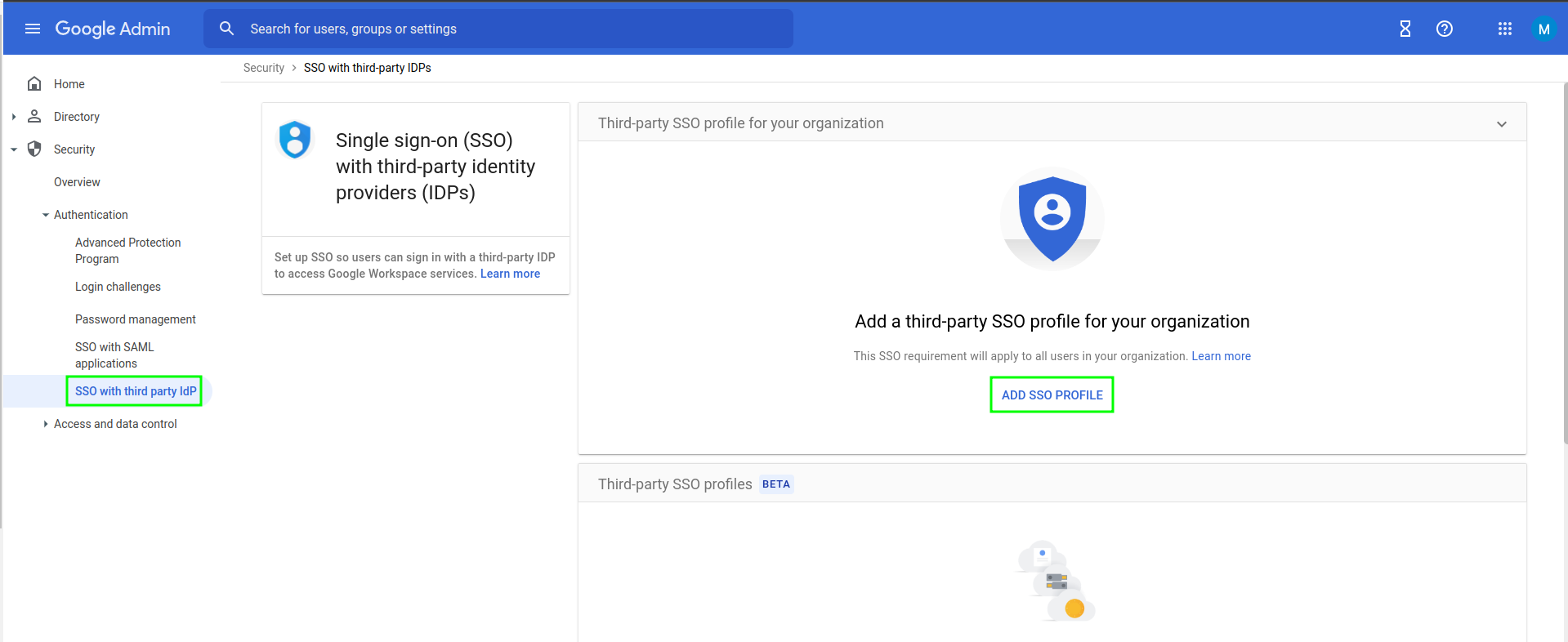

• Add SSO Profile

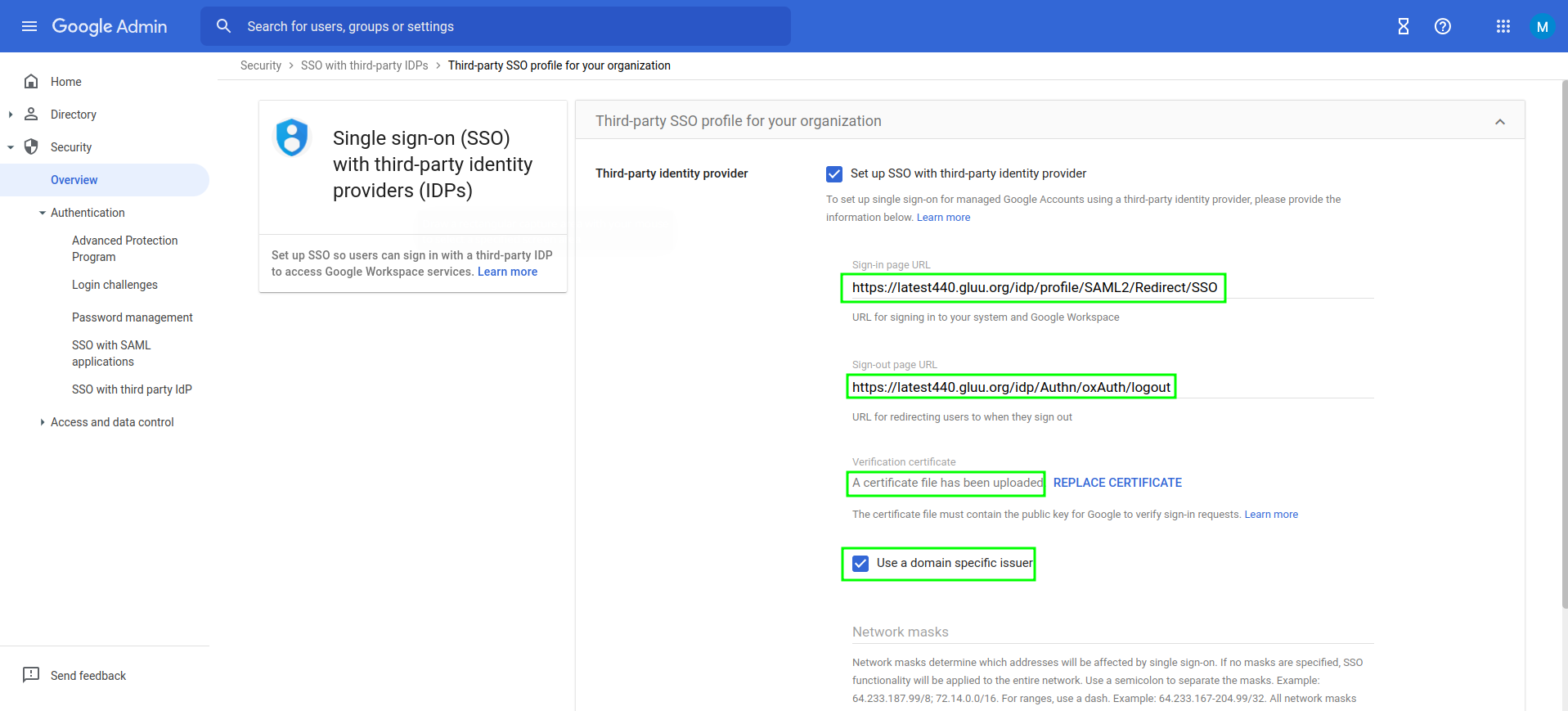

  • Check Set up SSO with third-party identity provider

  • Sign-in page URL: https://[hostname_of_Gluu_Server]/idp/profile/SAML2/Redirect/SSO

  • Sign-out page URL: https://[hostname_of_Gluu_Server/idp/Authn/oxAuth/logout

  • Verificiation certificate: Log into your Gluu Server and grab idp-signing.crt from ~inside_container/etc/certs/. Upload it.

• Save configuration.

Gluu Server configuration

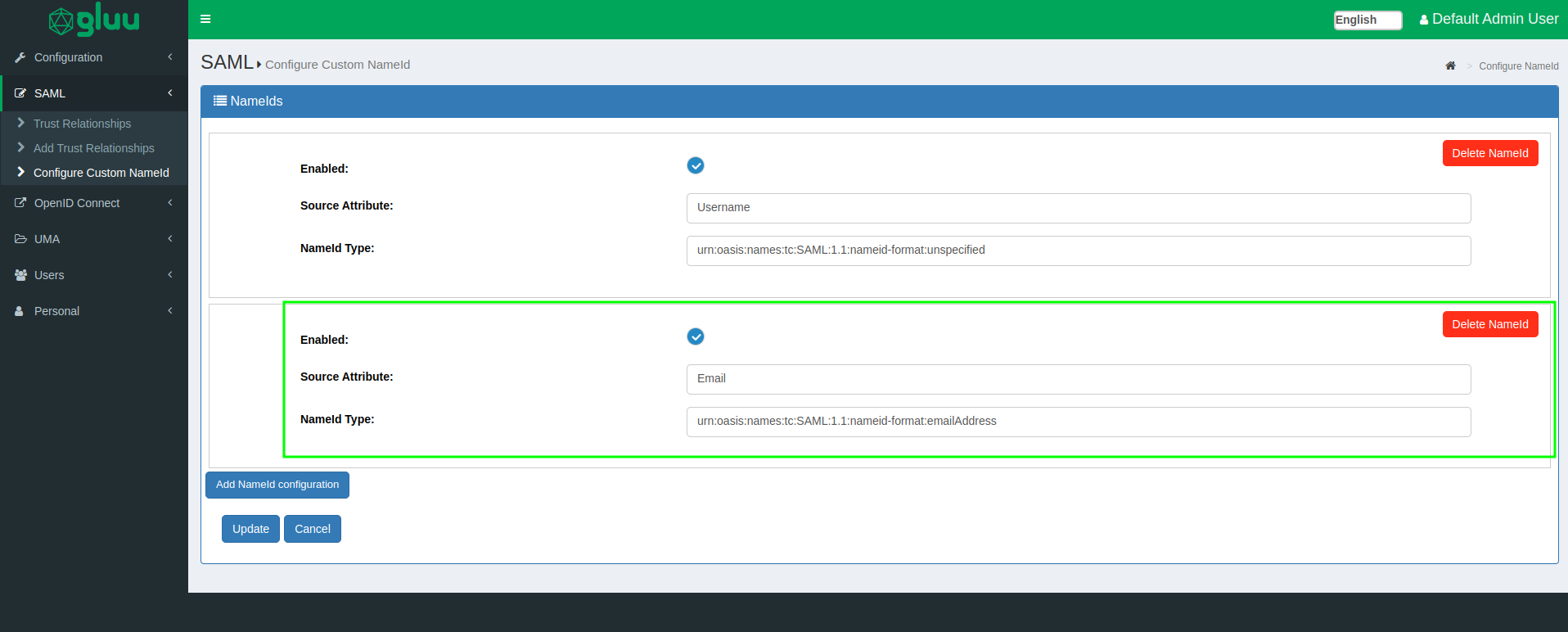

• Configure NameID:

  • Configure a NameID based on Email attribute.

  • NameId type would be: urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress

• Create Trust Relationship:

  • We need to write a quick metadata for Google workplace which we are going to use in trust relationship.

  • Metadata is attached below. Deployer need to modify that according to their own DNS entry.

    <EntityDescriptor entityID="google.com/a/company.org" xmlns="urn:oasis:names:tc:SAML:2.0:metadata">
        <SPSSODescriptor protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol">
           <NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress</NameIDFormat>
                <AssertionConsumerService index="1" Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"
                Location="https://www.google.com/a/company.org/acs" >
                </AssertionConsumerService>
        </SPSSODescriptor>
    </EntityDescriptor>

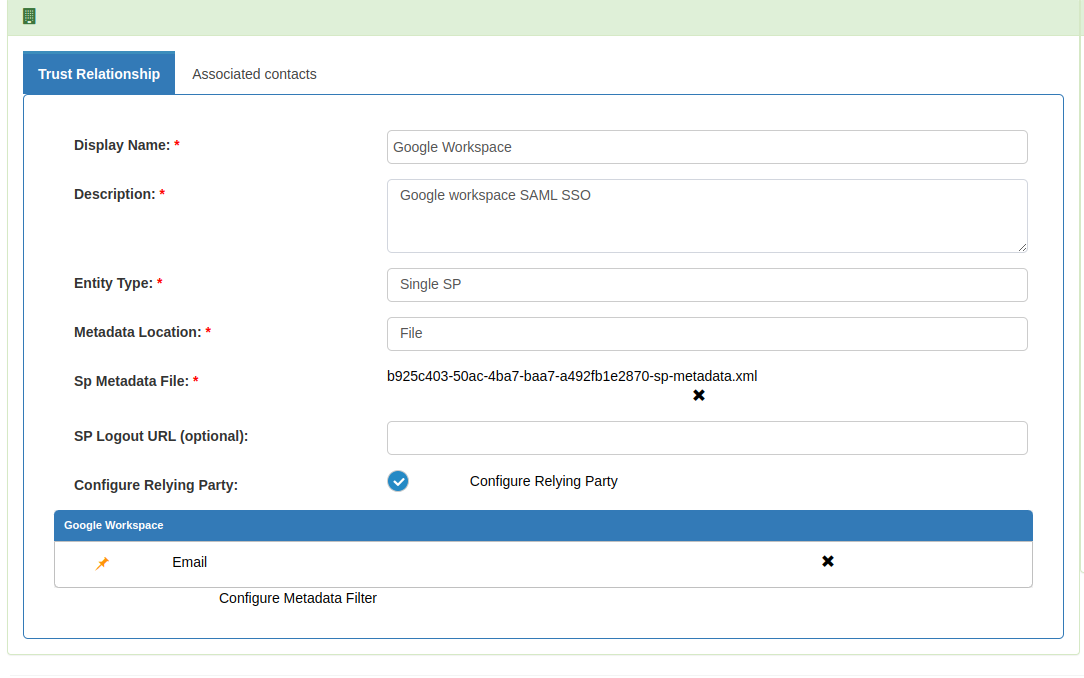

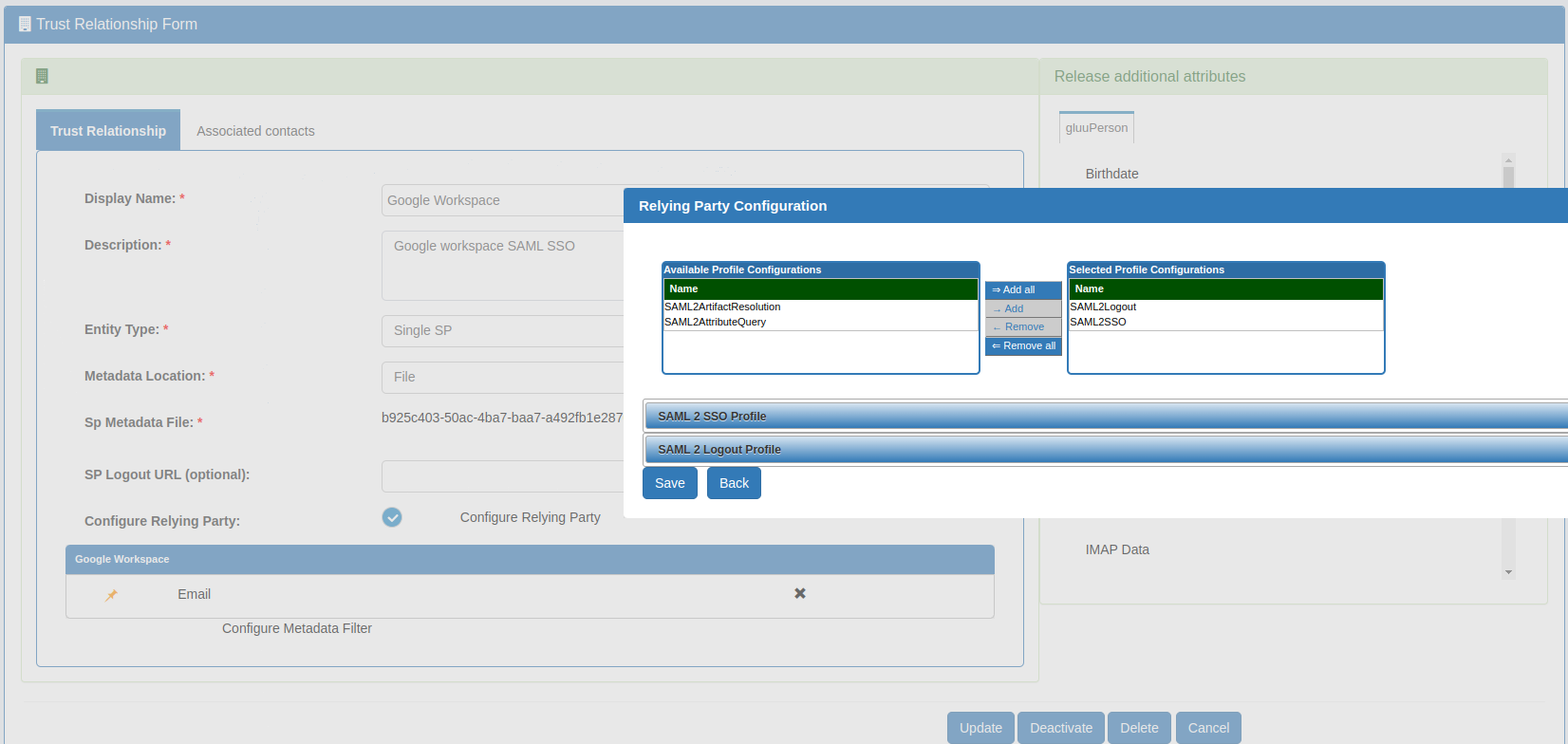

  • Create a trust relationship with above metadata and release "Email" attribute.

• Create test user who is aligned with your Google Workspace user (for testing purposes). Our test user is 'zico@gluu.org' which is available in both Google and Gluu Server.

Test

Initiate SSO with docs.google.com/a/gluu.org and it would look as demonstrated in this video.
