oxTrust JSON Configuration#

Overview#

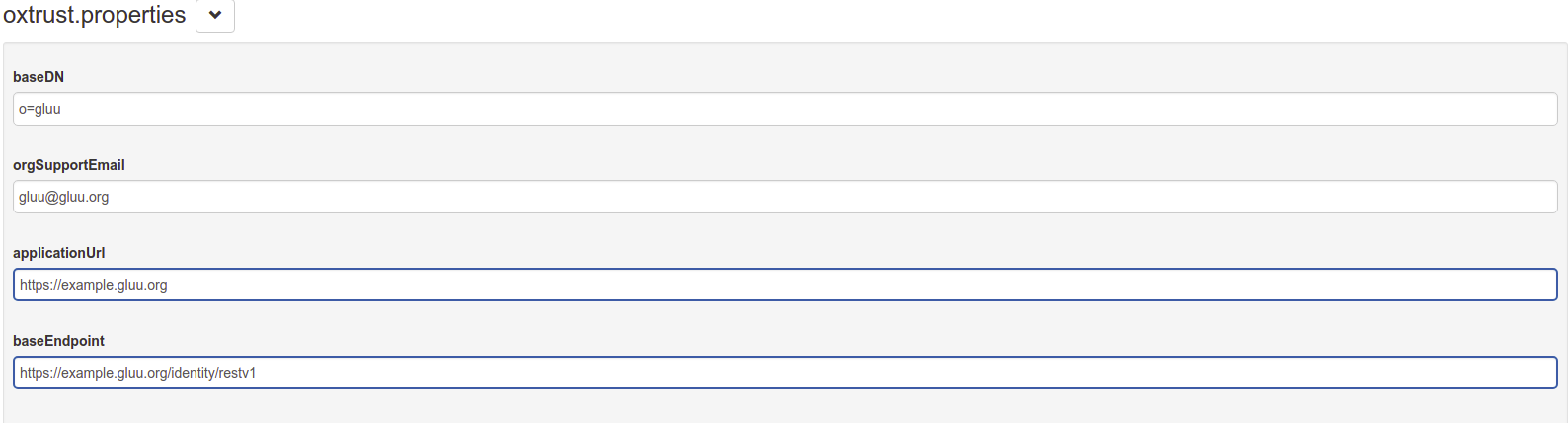

This page explains the oxTrust JSON Configuration which can by found by navigating to Configuration > JSON Configuration.

The following fields are available for edit in the menu.

Fields/Attributes	Description
baseDN	The base distinguished name of oxTrust. The default is `o=gluu`
orgSupportEmail	The support email address of the Gluu Server installation
applianceUrl	The URI of the appliance
baseEndpoint

This class holds the relationship between the person entry and its relative object class.

This class holds the relationship between the display name of the person and the relative object class.

Items can be added under this class by clicking on the + item button.

Items can be added under this class by clicking on the + item button.

Fields/Attributes	Description
photoRepositoryRootDir	Path to the root directory of photographs
photoRepositoryThumbWidth	thumb width of a photo
photoRepositoryThumbHeight	sets the thumb height of a photo
photoRepositoryCountLevels	count level per photo repository
photoRepositoryCountFoldersPerLevel	number of folders per level
authMode	set this tag to `basic` to use basic authentication or leave it blank to use oxAuth
ldifStore	Path to the LDIF store
shibboleth2IdpRootDir	root directory for the shibboleth plugin
shibboleth2SpConfDir	Configuration directory for the shibboleth plugin
pokenApplicationSecret
updateStatus	update appliance state for the site. Use `true` to allow, and `false` to forbid
svnConfigurationStoreRoot	Root of the SVN configuration store
svnConfigurationStorePassword	Password of the SVN configuration store
keystorePath	Path to the keystore
keystorePassword	Password to the keystore
allowPersonModification	Enables or disables the allowance to modify a person entry. Use `true` to allow (default value), and `false` otherwise
idpUrl	uri of the OpenID provider that is in use
velocityLog	Velocity log filename with path
spMetadataPath	Path to the Gluu Server metadata
logoLocation	Directory name for the images and logos that are used
idpSecurityKey	Security key of the OpenID provider
idpSecurityKeyPassowrd	Security password of the OpenID provider
idpSecurityCert	Security certificate of the machine

Items can be added here by clicking on the + item button.

Fields/Attributes	Description
configGeneration	This entry controls the automatic generation of the configuration files. Use `enable` to allow and `disable` otherwise
idpLdapProtocol	Protocol used by the [LDAP][ldap] server
idpLdapServer	Hostname of the [LDAP][ldap] server with port
idpBindDn	Domain name of the OpenID provider
idpBindPassowrd	Password for the OpenID provider
idpUserFields
gluuSpCert	Certificate name and location of the Gluu Server
shibboleth3FederationRootDir	Root directory for the Shobboleth federation plugin
cacheRefreshEnabled	Value of the cache refresh mechanism. Use `true` to enable and `false` otherwise
cacheRefreshIntervalMinutes	Time in minutes counting down to next cache-refresh event
caCertsLocation	Keystore to use for downloaded SSL certificates
caCertsPassphrase	Password for the caCerts keystore
tempCertDir	Temporary location for certificates while certificate update procedure
certDir	Locaiton of certificates used in configuration files
servicesRestartTrigger	Location of the file which will restart the applicance server if deleted
persistSVN	State of persistence in SVN. Use `true` to enable or `false` otherwise
oxAuthSectorIdentifierUrl	URI for oxAuth sector identifier
oxAuthClientId	Identification number for oxAuth client
oxAuthClientPassword	Password for oxAuth client
oxAuthClientScope	Scope of the oxAuth client
loginRedirectUrl	Redirect URI for oxAuth
logoutRedirectUrl	Logout redirect URI for oxAuth

Items can be added here by clicking on the + item button.

Fields/Attributes	Description
clientAssociationAttribute	Attribute which identifies the OpenID client
oxAuthIssuers	URI of the issuer authorization server
ignoreValidation	Control to check/ignore token validation. Use `true` to validate or `false` otherwise
umaIssuer	URI of the issuer authorization server
scimUmaClientId	Identification of the UMA client
scimUmaClientKeyId
scimUmaResourceId
scimUmaScope	Scopes available for this resource
scimUmaClientKeyStoreFile
scimUmaClientKeyStorePassword
apiUmaClientID
apiUmaClientKeyId
apiUmaResourceId

Items can be added here by clicking on the + item button

Fields/Attributes	Description
apiUmaClientKeyStoreFile
apiUmaClientKeyStorePassword
passportUmaClientId
passportUmaClientKeyId
passportUmaResourceId
passportUmaScope
passportUmaClientKeyStoreFile
passportUmaClientKeyStorePassword
recaptchaSiteKey
recaptchaSecretKey
cssLocation	Path to the CSS files
jsLocation	Path to the JS files
metricReporterInterval	The interval for metric reporter in seconds
metricReporterKeepDataDays	The number of days to keep metric reported data
metricReporterEnabled	Boolean value specifying whether to enable Metric Reporter
rptConnectionPoolUseConnectionPooling
rptConnectionPoolMaxTotal
rptConnectionPoolDefaultMaxPerRoute
rptConnectionPoolValidateAfterInactivity
rptConnectionPoolCustomKeepAliveTimeout
scimTestMode
shibbolethVersion
shibboleth3ldpRootDir
shibboleth3SpConfDir
organizationName
idp3SigningCert
idp3EncryptionCert
oxIncommonFlag
loggingLevel	Logging level for oxTrust loggers

This list details the whitelisted client redirection URIs

This list details the blacklisted client redirection URIs

Fields/Attributes	Description
MAX COUNT	Maximum value "count" query parameter can take (also used as default value when not specified)
disableJdkLogger	Boolean value specifying whether to enable JDK Loggers
passwordResetRequestExpirationTime	Expiration time in seconds for password reset requests
cleanServiceInterval	Time interval for the Clean Service in seconds
authenticationRecaptchaEnabled	Boolean value specifying whether to enable Recaptcha on authentication
enforceEmailUniqueness	Boolean value specifying whether to enforce email uniqueness on oxTrust side

Descriptions for oxTrust properties can be viewed here and the oxTrust import JSON description is here
