Office 365 configuration in Gluu Server v3#

This doc will guide you on how to setup a Gluu Server as your identity provider (IDP) for access to Office 365. By using a Gluu Server as your IDP you can bypass the process of storing passwords directly in O365.

Note

The attributes ObjectGUID and IDPEmail are mandatory for O365 SSO. The domain of IDPEmail must match the registered domain as well.

Requirements#

  • A Gluu Server with the Shibboleth IDP installed;
  • An O365 account with administrative privilege.

Office 365 Configuration#

  1. Create a test user from Office365 Admin Panel. Alternatively, you can use this doc to connect a backend Azure Active Directory (AD).

  2. Register the domain from the Office365 (O365) Admin Panel from Settings > Domains

    • Verify the domain

  3. Register Gluu Server in O365

    • Install/Use Windows Server 2012 R2

    • Install and Configure Windows Powershell cmdlets

    • Create a script and run through Connect-MsolService or you can provide values inside O365 admin panel.

    • For Gluu Server, values would be something like these:

ActiveLogOnUri                         : https://<hostname>/idp/profile/SAML2/SOAP/ECP
PassiveLogonUri                        : https://<hostname>/idp/profile/SAML2/POST/SSO
DefaultInteractiveAuthenticationMethod :
FederationBrandName                    : Gluu Inc.
IssuerUri                              : https://<hostname>/idp/shibboleth
LogOffUri                              : https://<hostname>/identity/logout
MetadataExchangeUri                    : https://<hostname>/idp/shibboleth
NextSigningCertificate                 :
OpenIdConnectDiscoveryEndpoint         :

Gluu Server Configuration#

Custom Attributes#

The configuration begins by creating a few custom attributes named IDPEmail, ImmutableID and objectguid. Refer to this doc to create custom attributes.

objectguid syntax will be slightly different from other custom attributes. objectGUID attributetype should be in the following syntax:

{

attributetype ( oxAttribute:1003 NAME 'objectGUID'
        SYNTAX 1.3.6.1.4.1.1466.115.121.1.5
       X-ORIGIN 'Gluu - custom person attribute' )

}
1. On creating custom attributes in the schema, the same attributes needs to be created in the using oxTrust as depicted below.

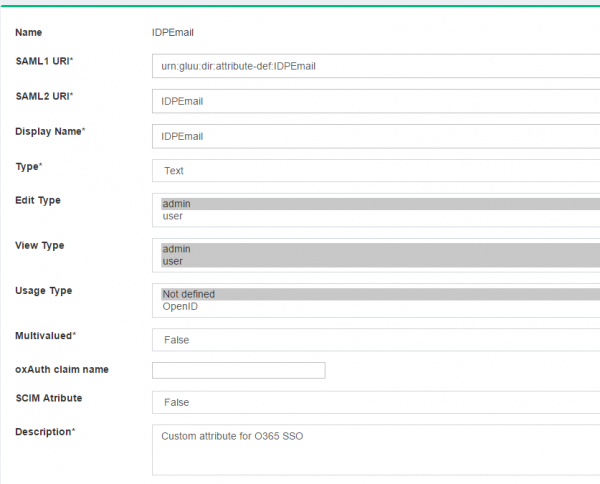

1. `IDPEmail` Custom Attribute

    ![image](../../img/integration/idpemail.png)

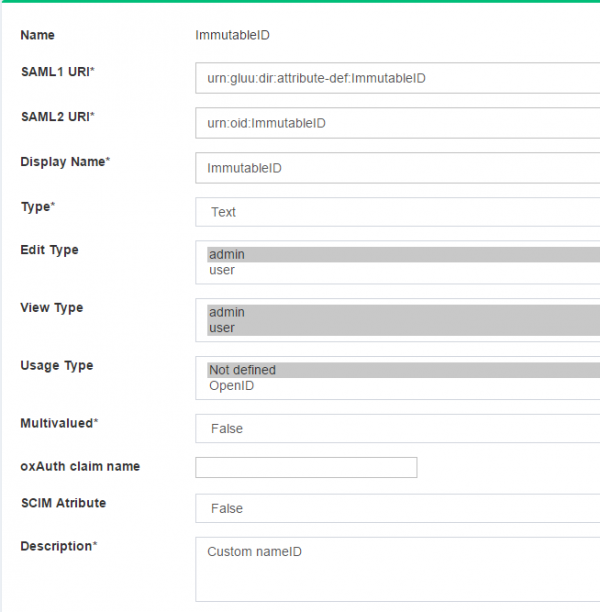

2. `ImmutableID` Custom Attribute

    ![image](../../img/integration/immutableid.png)

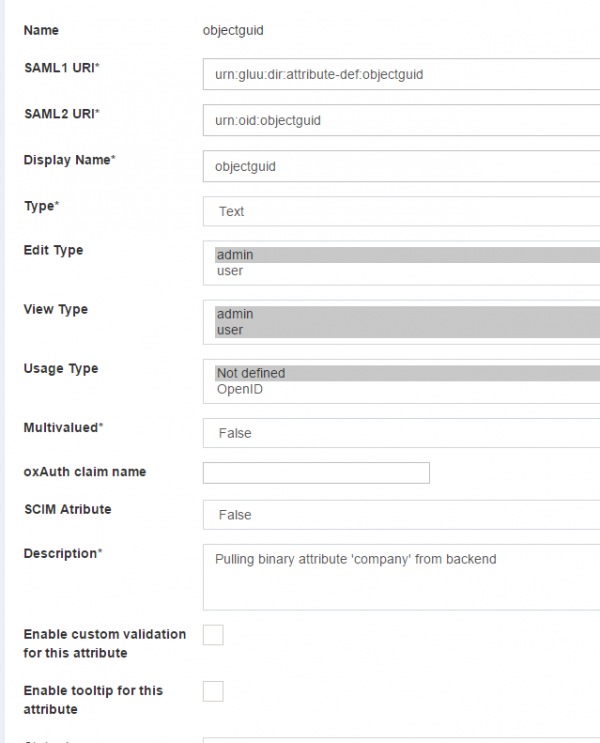

3. `objectguid` Custom Attribute

    ![image](../../img/integration/objectguid.png)

  1. Edit the attribute-resolver.xml.vm file under /opt/gluu/jetty/identity/conf/shibboleth3/idp folder.

    • Add $attribute.name.equals('ImmutableID') with the existing transientID and PersistentID to look like the snippet below

      ##if( ! ($attribute.name.equals('transientId') or $attribute.name.equals('persistentId') or$attribute.name.equals('ImmutableID') ) )

    • Add IDPEmail attribute definition

      <resolver:AttributeDefinition xsi:type="ad:Simple" id="UserId" sourceAttributeID="IDPEmail">
                    <resolver:Dependency ref="siteLDAP" />
                    <resolver:AttributeEncoder xsi:type="enc:SAML2String" name="IDPEmail" friendlyName="UserId"/>
</resolver:AttributeDefinition>

    • Add ImmutableID attribute definition

      <resolver:AttributeDefinition id="ImmutableID" xsi:type="Simple"
                          xmlns="urn:mace:shibboleth:2.0:resolver:ad"
                          sourceAttributeID="objectguid">
    <resolver:Dependency ref="siteLDAP"/>
    <resolver:AttributeEncoder xsi:type="SAML2StringNameID"
                            xmlns="urn:mace:shibboleth:2.0:attribute:encoder"
                            nameFormat="urn:oasis:names:tc:SAML:2.0:nameid-format:persistent" />
</resolver:AttributeDefinition>

IDP configuration#

The cache refresh mechanism is used to populate the Gluu Server LDAP with data from a backend LDAP/AD. The objectGUID attribute must be pulled from the backend data source to Gluu Server.

  • Edit the ox-ldap.properties (location: /etc/gluu/conf/ox-ldap.properties) to add the following:

binaryAttributes=objectGUID,objectguid

Note

objectGUID (the first one) is the attribute which contains binary values in the backend AD and objectguid (the second one) is the Gluu Server binary attribute name which will pull value from objectGUID attribute

  • Restart oxAuth, identity, and idp services
    ```
# service identity stop
# service identity start
# service oxauth stop
# service oxauth start
```

    Identity Mapping#

Two attributes require for mapping:

  • IDPEmail
  • objectguid

IDPEmail pull data from backend's email attribute and objectguid get data from backend's objectGUID.

Create Trust Relationship#

Refer here to create trust relationships. Need to grab metadata from Micrsoft. Metadata will look like below:

  <?xml version="1.0" encoding="utf-8"?>
  <EntityDescriptor ID="abcdefghijklmn" entityID="urn:federation:MicrosoftOnline" xmlns="urn:oasis:names:tc:SAML:2.0:metadata" xmlns:alg="urn:oasis:names:tc:SAML:metadata:algsupport">
    <Signature xmlns="http://www.w3.org/2000/09/xmldsig#">
      <SignedInfo>
        <CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
        <SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>
        <Reference URI="#opqrstuvwxyz">
          <Transforms>
            <Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
            <Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
          </Transforms>
          <DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>
          <DigestValue>........</DigestValue>
        </Reference>
      </SignedInfo>
      <SignatureValue>

        ....
        ....
        ....

      </X509Certificate>
    </X509Data>
    </KeyInfo>
  </Signature>
    <Extensions>
      <alg:DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>
      <alg:SigningMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>
    </Extensions>

    <SPSSODescriptor protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol" WantAssertionsSigned="true">
      <KeyDescriptor use="signing">
        <ds:KeyInfo xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
          <ds:X509Data>
            <ds:X509Certificate>

              ....
              ....
              ....

            </ds:X509Certificate>
          </ds:X509Data>
        </ds:KeyInfo>
      </KeyDescriptor>
      <KeyDescriptor use="signing">
        <ds:KeyInfo xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
          <ds:X509Data>
            <ds:X509Certificate>

              ....
              ....
              ....

            </ds:X509Certificate>
          </ds:X509Data>
        </ds:KeyInfo>
      </KeyDescriptor>

      <SingleLogoutService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="https://login.microsoftonline.com/login.srf"/>

      <NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress</NameIDFormat>
      <NameIDFormat>urn:mace:shibboleth:1.0:nameIdentifier</NameIDFormat>
      <NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified</NameIDFormat>
      <NameIDFormat>urn:oasis:names:tc:SAML:2.0:nameid-format:transient</NameIDFormat>
      <NameIDFormat>urn:oasis:names:tc:SAML:2.0:nameid-format:persistent</NameIDFormat>

      <AssertionConsumerService isDefault="true" index="0" Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="https://login.microsoftonline.com/login.srf"/>
      <AssertionConsumerService index="1" Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST-SimpleSign" Location="https://login.microsoftonline.com/login.srf"/>

      <!-- PAOS functionality is NOT supported by this service. The binding is only included to ease setup and integration with Shibboleth ECP -->
      <AssertionConsumerService index="2" Binding="urn:oasis:names:tc:SAML:2.0:bindings:PAOS" Location="https://login.microsoftonline.com/login.srf"/>
    </SPSSODescriptor>
  </EntityDescriptor>

Configure Relaying Party#

Refer to Relaying Party Configuration for more details. Relaying Party configuration screen should look like below.
