Office 365 Integration with Gluu Server#

Attention

The official support end-of-life (EOL) date for Gluu Server 2.4.4 is December 31, 2018. Starting January 1, 2019, no further security updates or bug-fixes will be provided for Gluu Server 2.X. We strongly recommend upgrading to the newest version.

This guide is created to use Microsoft Office 365 Single-Sign-On with Gluu Server. It is assumed that an Office 365 subscription is available/registered.

Note: The attributes ObjectGUID and IDPEmail are mandatory for O365 SSO. The domain of IDPEmail must match the registered domain as well.

Office 365 Configuration#

  1. Please create a test user from Office365 Admin Panel
    Alternatively, use this doc to connect backend Azure Active Directory (AD)

  2. Register the domain from the Office365 (O365) Admin Panel from Settings --> Domains

    • Verify the domain

  3. Register Gluu Server in O365

    • Install/Use Windows Server 2012 R2

    • Install and Configure Windows Powershell cmdlets

    • Create a script named gluu1.ps1 with the following template changing domain, hostname of Gluu Server and Certificate

       Connect-MsolService

$dom = "company.org"
$url = "https://<hostname>/idp/profile/SAML2/POST/SSO"
$uri = "https://<hostname>/idp/shibboleth"
$logouturl = "https://<hostname>/idp/logout.jsp"
$cert = "Mx....SAML_cert_of_your_Gluu_Server...Tdsg9R0XO3AnBeHRtGmAA="

Set-MsolDomainAuthentication -DomainName $dom -FederationBrandName $dom -Authentication Federated  -PassiveLogOnUri $url -SigningCertificate $cert -IssuerUri $uri -LogOffUri $logouturl -PreferredAuthenticationProtocol SAMLP

  4. Run the gluu.ps1 script from Windows Server 2012 R2

Gluu Server Configuration#

Custom Attributes#

The configuration begins by creating a few custom attributes named IDPEmail, ImmutableID and objectguid. Please see this doc to create custom attributes.

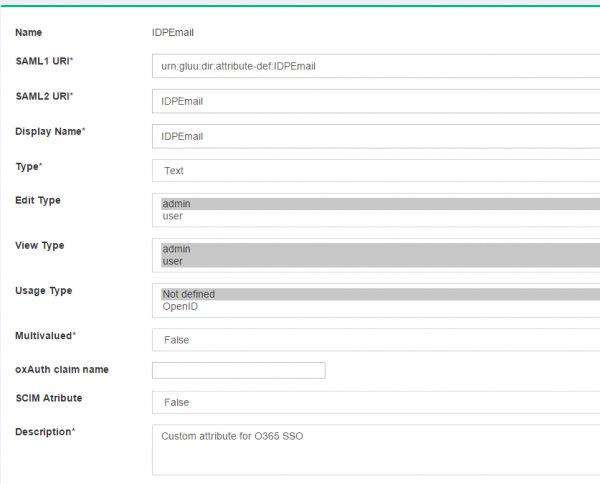

  1. IDPEmail Custom Attribute image

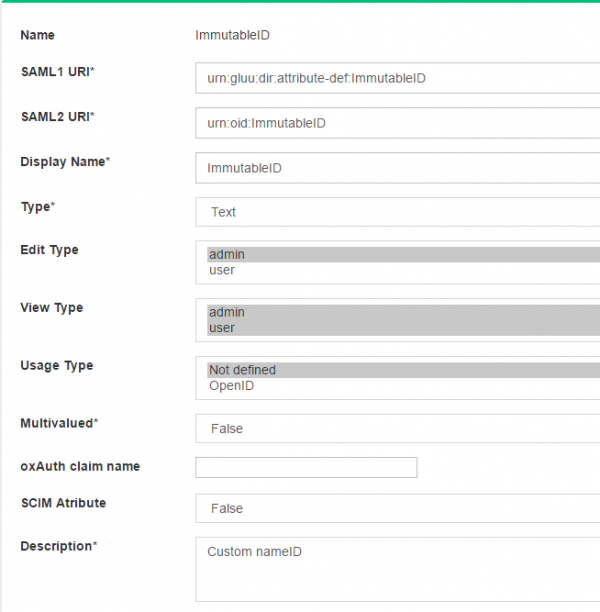

  2. ImmutableID Custom Attribute image

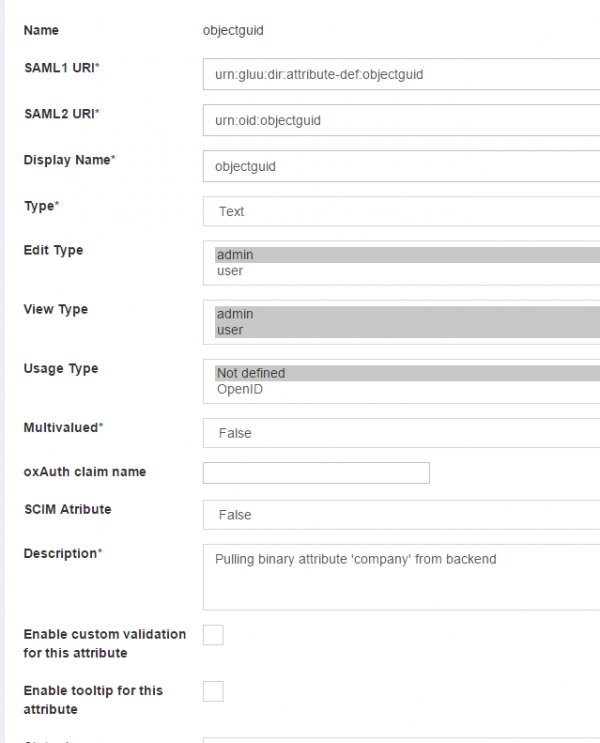

  3. objectguid Custom Attribute image

OpenDJ Configuration#

  1. Edit the 100-user.ldif file under /opt/opendj/config/schema folder.

    • Remove the obhectGUID entry from the file

    • Add the following new entry

      attributeTypes: ( 1454676848732 NAME 'objectGUID' SYNTAX 1.3.6.1.4.1.1466.115.121.1.5 USAGE userApplications X-ORIGIN 'gluu' )

    • Restart OpenDJ

  2. Edit the attribute-resolver.xml.vm file under /opt/tomcat/conf/shibboleth2/idp folder

    • Add $attribute.name.equals('ImmutableID') with the existing ($attribute.name.equals('transientId') to look like the snippet below

      #if(!($attribute.name.equals('transientId')or$attribute.name.equals('ImmutableID')))

    • Add IDPEmail attribute definition

       <resolver:AttributeDefinition xsi:type="ad:Simple" id="UserId" sourceAttributeID="IDPEmail">
                        <resolver:Dependency ref="siteLDAP" />
                        <resolver:AttributeEncoder xsi:type="enc:SAML2String" name="IDPEmail" friendlyName="UserId" />
        </resolver:AttributeDefinition>

    • Add ImmutableID attribute definition

       <resolver:AttributeDefinition id="ImmutableID" xsi:type="Simple"
                              xmlns="urn:mace:shibboleth:2.0:resolver:ad"
                              sourceAttributeID="objectguid">

        <resolver:Dependency ref="siteLDAP"/>
        <resolver:AttributeEncoder xsi:type="SAML2StringNameID"
                                xmlns="urn:mace:shibboleth:2.0:attribute:encoder"
                                nameFormat="urn:oasis:names:tc:SAML:2.0:nameid-format:persistent" />
</resolver:AttributeDefinition>

Identity Mapping#

The cache refresh mechanism is used to populate the Gluu Server LDAP with data from a backend LDAP/AD. The objectGUID attribute must be pulled from the backend data source to Gluu Server.

  • Edit the ox-ldap.properties, oxauth-ldap.properties and oxidp-ldap.properties files to add the following

    binaryAttributes=objectGUID,objectguid
    Note:'objectGUID' (the first one) is the attribute which contains binary values in the backend AD and 'objectguid' (the second one) is the Gluu Server binary attribute name which will pull value from 'objectGUID' attribute

  • Restart Tomcat

Create Trust Relationship#

Please see this doc to create trust relationships.

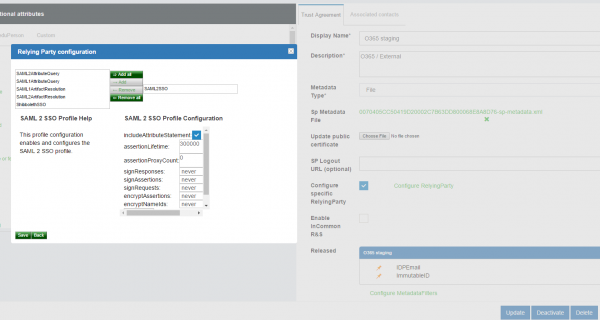

  • Configure Relaying Party like the following screenshot image
